Pulse Oxygen Concentrator

What Is a Pulse Oxygen Concentrator and How Does It Work?

Breathing problems should not hold you back. You deserve an oxygen device that works at home, while travelling, and everywhere in between. Our pulse oxygen concentrator is small, light, and easy to use. It delivers medical-grade oxygen wherever you need it most.

Seven Settings to Match Your Breathing Needs

Most oxygen machines offer just one or two flow options. This concentrator gives you seven. That means your doctor can choose the exact setting that suits your condition. Gears 1 to 5 work in pulse mode. The device senses when you breathe in and delivers oxygen at that moment. This saves battery and works well for most daily activities. Gear 6 delivers oxygen at a fixed, steady pace. It does not depend on your breathing rhythm, so it works well when your breathing becomes uneven. Gear 7 gives a non-stop flow of oxygen. This is useful when you need continuous support through the day or night.

Light Enough to Carry, Strong Enough to Rely On

The device weighs just 1.7kg. The battery adds only 0.5kg. So the total weight is just 2.2kg, lighter than most everyday bags. Furthermore, the compact size fits easily into a shoulder bag or travel case. You can take it on car trips, flights, walks, and day outings without any trouble. It never feels like a burden to carry around.

Six Hours of Battery Life — Ready When You Are

The battery runs for up to six hours on one charge. That covers most daily trips and outings with ease. Additionally, it recharges fully in just four hours. So a short rest at home or in a hotel brings it back to full power quickly. The battery is also detachable. You can carry a spare and swap it in during longer trips. As a result, you never have to cut a day short because of a flat battery.

Medical-Grade Oxygen at All Times

This concentrator delivers 90% or above oxygen purity at every gear setting. Every breath you take contains effective, therapeutic oxygen. It works across a breathing rate range of 10 to 40 breaths per minute. That covers slow resting breaths and faster active breathing alike. Moreover, it works reliably at altitudes up to 6,000 metres above sea level. Most portable concentrators fail at high altitudes. This one, however, keeps delivering consistent oxygen on mountain treks, pilgrimages, and trips to places like Ladakh and Himachal Pradesh.

Quiet, Safe, and Easy to Use

The device runs at or below 60 decibels at Gear 5. That is quieter than a normal conversation. Therefore, you can use it at night or in shared spaces without disturbing anyone. It also has three built-in safety alarms. These alert you straight away if the battery is low, if no breath is detected, or if a system fault occurs. As a result, you and your caregiver always know the device is working correctly. You do not need to keep checking on it manually.

Ready in Three Minutes, Compatible Everywhere

Switch the device on and it is ready to deliver oxygen in just three minutes. There is no long wait before therapy begins. Additionally, it runs on universal power between 100 and 240 volts. That means it works with wall sockets in India, Europe, the USA, the Middle East, and most other countries. Whether you are at home or staying abroad, you can plug it in and start using it right away.

Built to Medical Safety Standards

This concentrator meets three major international safety standards. These are IEC 60601-1-1, IEC 60601-1-2, and IEC 80601-2-12. These are the same standards hospitals and clinics use worldwide. It also has an IP22 protection rating. That means it is protected against dust and water splashes during normal daily use. Furthermore, it comes with a one-year warranty on the device and three months on the battery. So you have solid after-sales protection and real peace of mind from day one.

Key Features of Our Portable Pulse Oxygen Concentrator

• 7 Gear Settings in One Device — Five pulse modes (P1–P5), one fixed-frequency mode (P6), and one continuous flow mode (P7) cover every clinical and lifestyle oxygen need
• ≥90% Oxygen Purity at All Settings — Delivers medical-grade oxygen concentration consistently across all gear positions and respiratory rates from 10 to 40 BPM
• Ultra-Lightweight at 1.7kg — Device body weighs just 1.7kg; total carry weight with battery is only 2.2kg, among the lightest in its category

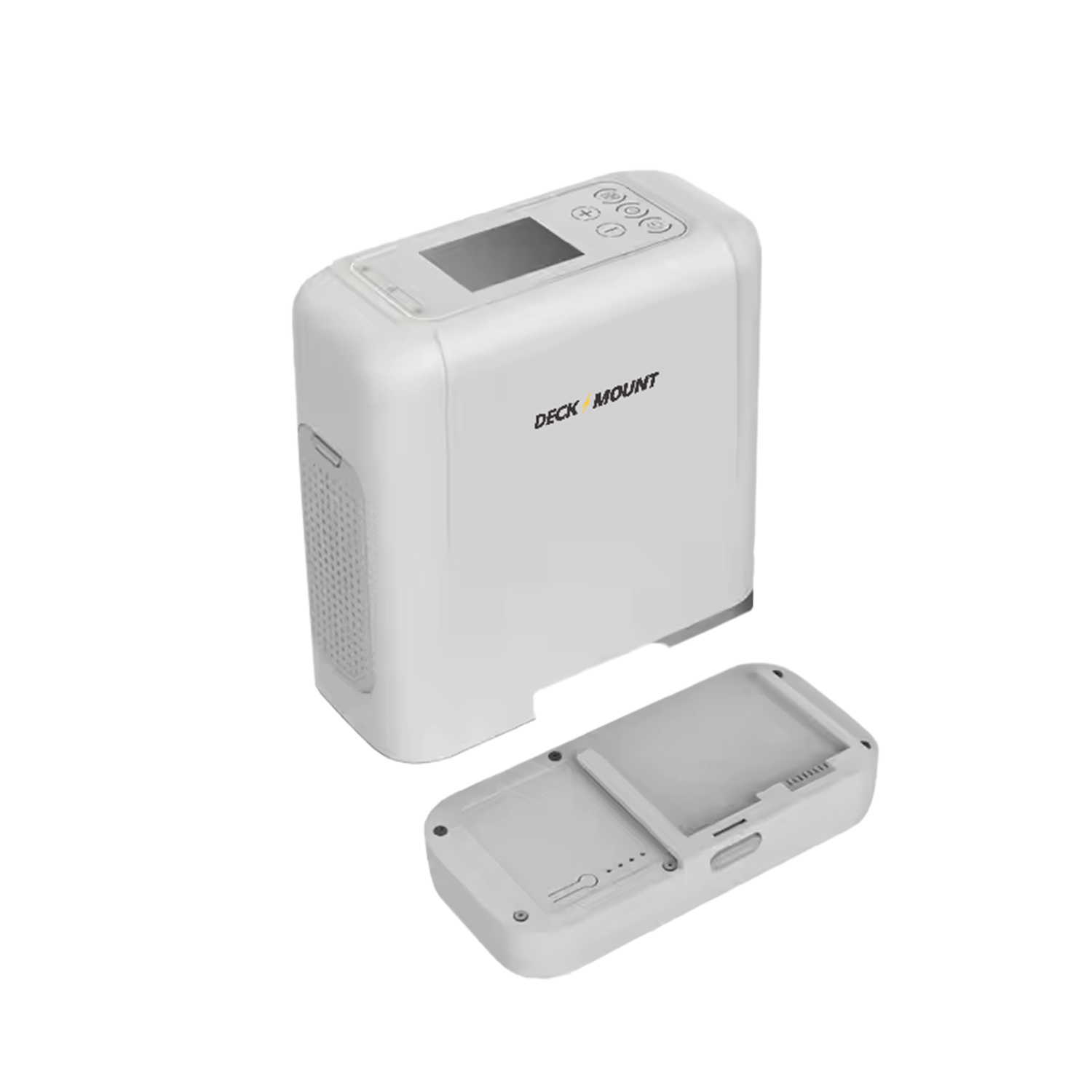

• Detachable Lithium-Ion Battery — 14.8V / 4A battery provides up to 6 hours of runtime and recharges fully in just 4 hours
• High-Altitude Operation Up to 6,000M — Reliably delivers oxygen therapy at altitudes between 5,000 and 6,000 metres above sea level
• Smart Multi-Alarm System — Audio alarms (≥45dB) for low battery, no-breath detection, and system errors ensure safe, supervised operation at all times
• Quiet Operation at ≤60dB — Runs at or below 60dB(A) at Gear 5, quiet enough for sleep, conversation, and indoor use
• Universal AC Power Compatibility — Operates on AC 100–240V, 50/60Hz, making it compatible with power sockets worldwide
• Rapid 3-Minute Warm-Up Time — Reaches full oxygen delivery performance within just 3 minutes of switching on
• 2.8-Inch Interface Display — Clear control panel for easy gear selection and status monitoring
• IP22 Ingress Protection — Protects against dust and water splashes for reliable use in varied everyday environments
• Internationally Certified — Conforms to IEC 60601-1-1, IEC 60601-1-2, and IEC 80601-2-12 medical electrical equipment standards
• 1-Year Device Warranty — Full manufacturer warranty on the device with 3-month battery coverage for long-term peace of mind

Technical Specifications

Who Should Use a Portable Pulse Oxygen Concentrator?

COPD Patients Requiring Daily Oxygen Therapy Chronic obstructive pulmonary disease (COPD) is one of the most common reasons for long-term oxygen therapy. This concentrator supports COPD patients through all daily activities, from resting at home to walking outdoors, without the limitations of a stationary machine.

Asthma and Chronic Respiratory Patients People with severe asthma, pulmonary fibrosis, or bronchiectasis benefit significantly from on-demand pulse oxygen delivery. Moreover, the adjustable sensitivity of ≤0.12 cmH₂O ensures the device detects even shallow breaths and responds with oxygen immediately.

Post-Surgery and Hospital Discharge Patients Patients recovering from thoracic surgery, pneumonia, or COVID-19 often require supplemental oxygen at home during recovery. This concentrator bridges the gap between hospital discharge and full recovery, safely and conveniently.

High-Altitude Travellers and Trekkers Standard oxygen concentrators fail above 3,000–4,000 metres. This device, however, operates reliably at altitudes between 5,000 and 6,000 metres. Therefore, it is ideal for trekkers in the Himalayas, pilgrims visiting high-altitude shrines, and mountaineering expeditions requiring supplemental oxygen support.

Frequent Flyers and International Travellers Universal AC 100–240V power input and compact dimensions make this concentrator one of the most travel-compatible devices on the market. Additionally, many airlines accept BPAP-listed portable concentrators on board, check airline-specific policies before travel.

Elderly Patients and Home Care Users Older patients who need oxygen therapy but want to remain mobile and independent find this device particularly valuable. Furthermore, caregivers appreciate the simple interface, clear display, and audible alarms that make supervision straightforward even without clinical training.

WHY CHOOSE THIS PRODUCT

7 Settings vs. the Industry Standard of 3–5 Most portable concentrators offer three to five pulse settings at most. This device provides seven, including fixed frequency and continuous flow, giving clinicians and patients far more therapeutic flexibility in a single compact unit.

Genuine High-Altitude Certification Many concentrators claim portability but fail to deliver adequate oxygen at altitude. This device is rated for normal use up to 6,000 metres above sea level, making it one of the few truly altitude-certified portable concentrators available in India.

Internationally Certified Medical Safety Standards IEC 60601-1-1, IEC 60601-1-2, and IEC 80601-2-12 compliance means this device meets the same safety benchmarks required of equipment used in hospitals and clinical settings worldwide. Therefore, patients receive genuine medical-grade technology, not a consumer wellness product.

Detachable Battery — A Practical Advantage The removable battery design allows users to carry a second charged battery for longer outings. As a result, the effective runtime doubles when needed, making all-day outdoor use genuinely achievable.

Quiet Enough to Use Anywhere At ≤60dB(A), this is one of the quieter portable concentrators in its class. Consequently, it suits nighttime use, public spaces, and indoor environments where noise is a concern.

1-Year Warranty With Ongoing Support A one-year device warranty and dedicated after-sales support give buyers long-term confidence in their purchase. Moreover, customers in India benefit from local service accessibility, reducing downtime if maintenance is ever required.
